laminar flow | Ansys Fluent tutorial | Non-dimensional

$ 55.00

In this training package, you will learn how to simulate a non-dimensional laminar flow inside a pipe, creating the model geometry, creating the mesh, defining boundary conditions, defining material properties, defining the solver criteria, and finally extracting the results.

Contents

  • Tutorial training video (*.mp4)
  • Fluent files (in ANSYS workbench)
  • Fluent lecture notes (*.pdf)
  • Free support up to 3 months
Compare
Add to wishlist
SKU: 013 Categories: , , ,
Description

Fluent tutorial: non-dimensional laminar flow

non-dimensional laminar flow

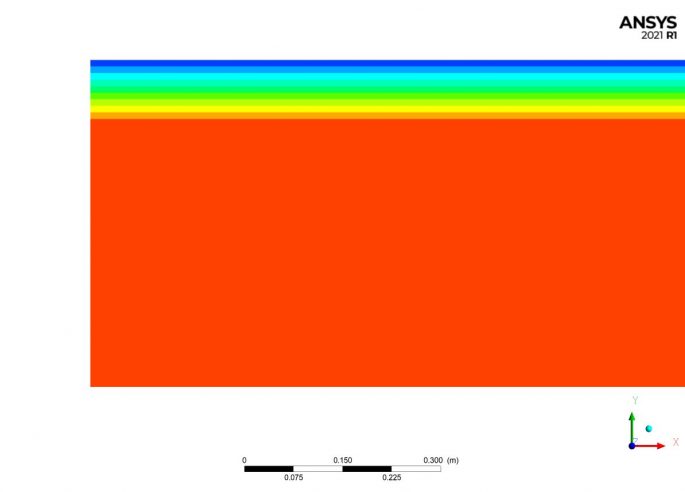

The purpose of this video is to teach you how to create a simulation for analyzing a non-dimensional laminar flow

in a pipe and creating a visual of the flow in the pipe.

What you learn

  • How to create the geometry in ANSYS
  • How to create the mesh in ANSYS
  • How to define the turbulence model in ANSYS
  • How to create and define boundary conditions in ANSYS
  • How to define material and material properties
  • How to define the convergence and define the output
  • How to perform the solver
  • How to extract the results



Package Uses

Simulating the flow using non-dimensional characteristics of the flow in different situations

Overview

  1. Create the geometry
  2. Mesh the geometry
  3. Define the solver settings, boundary conditions and solve the problem
  4. Extracting the results, contours, flow directions, etc.
